"LP-M" Series Massage Pump

The Aquaviva LP-M Series Massage Pump is engineered for demanding spa environments, offering exceptional performance and durability. Built with advanced plastic sealing technology, this pump provides excellent waterproofing while maintaining a Grade E temperature rise coefficient for consistent operation even in challenging conditions.

Key Features:

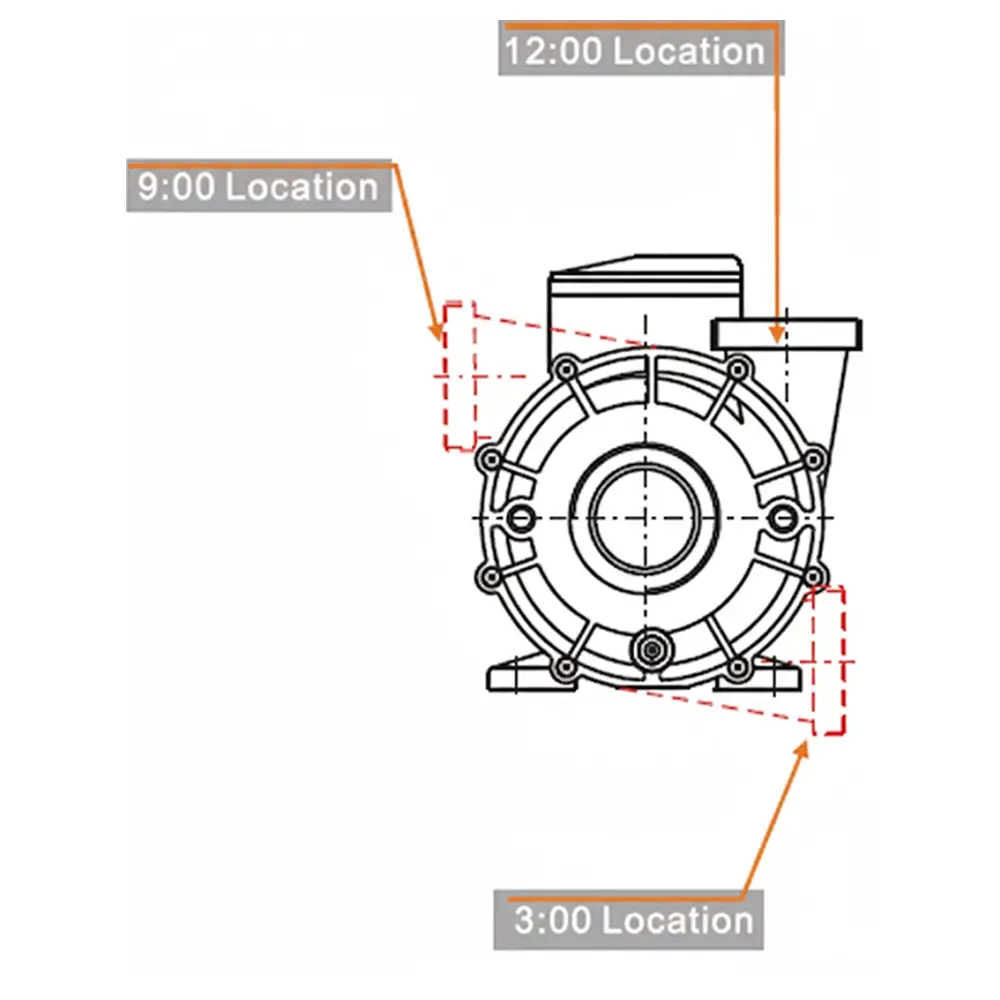

• Dual Water Direction Options: Available in both bathtub pump and SPA spa pump configurations, allowing flexible installation based on your specific requirements
• Robust Motor Design: High-efficiency motor (model LP35M) delivering reliable 1.5 HP performance at 220-240V/50Hz
• Durable Construction: Features hexagon screw assembly, O-ring seals, and mechanical seal for long-lasting, leak-free operation
• Optimal Working Conditions: Designed to operate efficiently in medium temperatures (5-50°C) and environmental temperatures up to 75°C
• Quality Components: Includes plain washer, pump casing, impeller, and plastic spacer for smooth, quiet operation
• Easy Maintenance: Accessible design with tie-in nut and O-ring cover for straightforward servicing

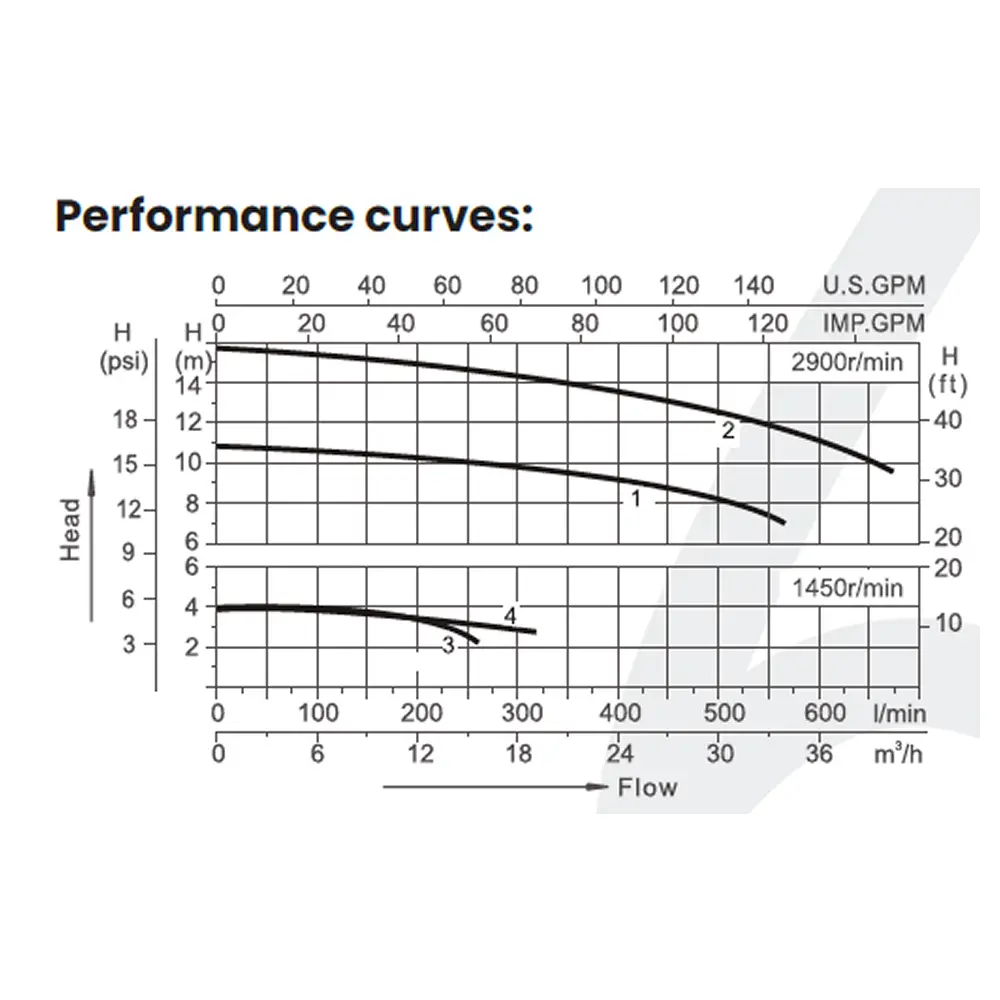

The pump's performance curve demonstrates consistent flow rates across various head pressures, making it suitable for both circulation and massage functions in spa systems. With a maximum working pressure of 0.3MPa, this pump ensures safe and effective water management.

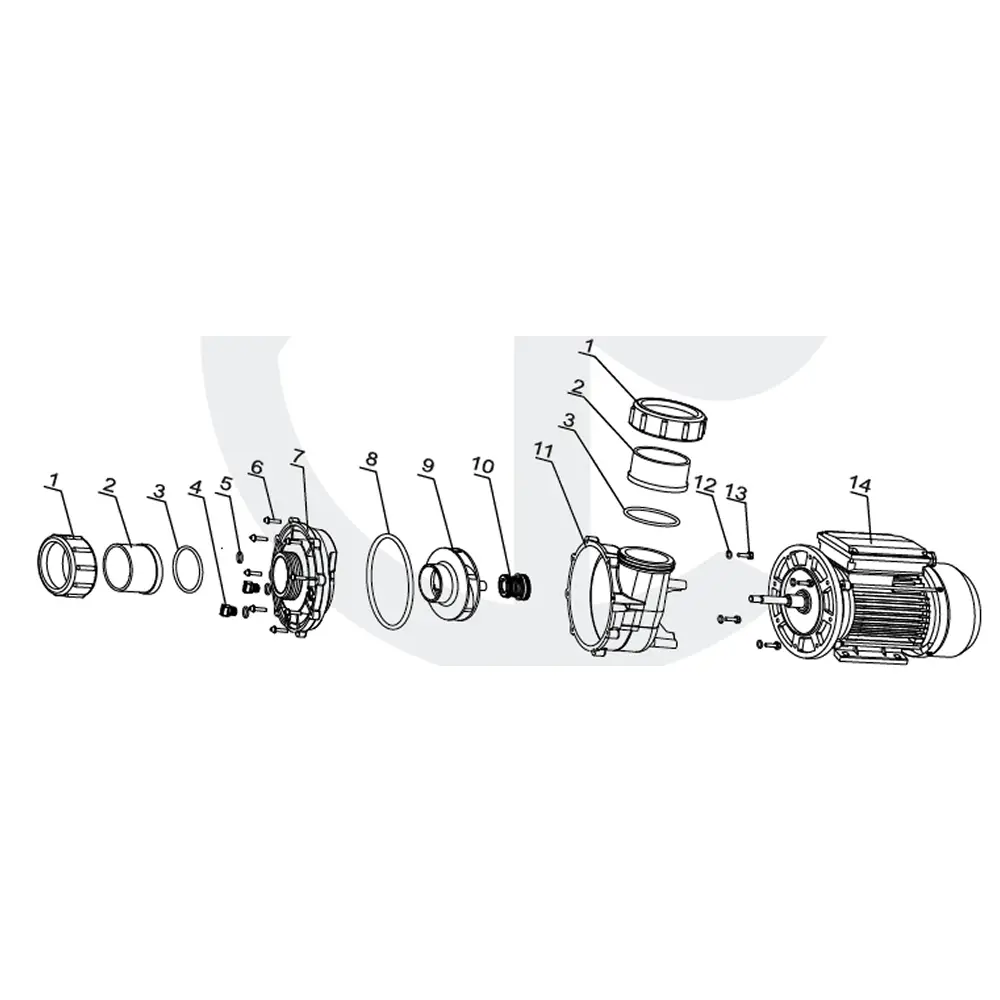

Main Components

• 1. Tie-in Nut
• 2. Tie
• 3. O-Ring
• 4. Hexagon Screw
• 5. Motor-slotted cylinder screw
• 6. O-Ring
• 7. O-Ring Cover
• 8. O-Ring
• 9. Impeller
• 10. Mechanical seal
• 11. Pump Casing
• 12. Plain washer
• 13. Plastic spacer
• 14. Motor

Working Conditions

• Medium temperature: 5–50°C
• Environmental temperature: ≤75°C
• Maximum working pressure: 0.3 MPa
• Sealing technology: Plastic sealing technology with good waterproof
• Temperature rise coefficient: Grade E (low temperature rise and long life)
