"LP" Series Massage Pump

The LP Series Massage Pump is designed for efficient water circulation in spa baths, bathtubs, and wellness equipment. It delivers strong and stable performance while maintaining energy efficiency and long-term reliability.

Category: Heat Pump

Description
Specifications

The LP Series Massage Pump is built to support massage and circulation systems where consistent water flow is essential. It is widely used in spa equipment, bathtubs, and therapeutic water systems. The pump is engineered with durable internal components and a compact structure that ensures smooth operation under continuous working conditions.

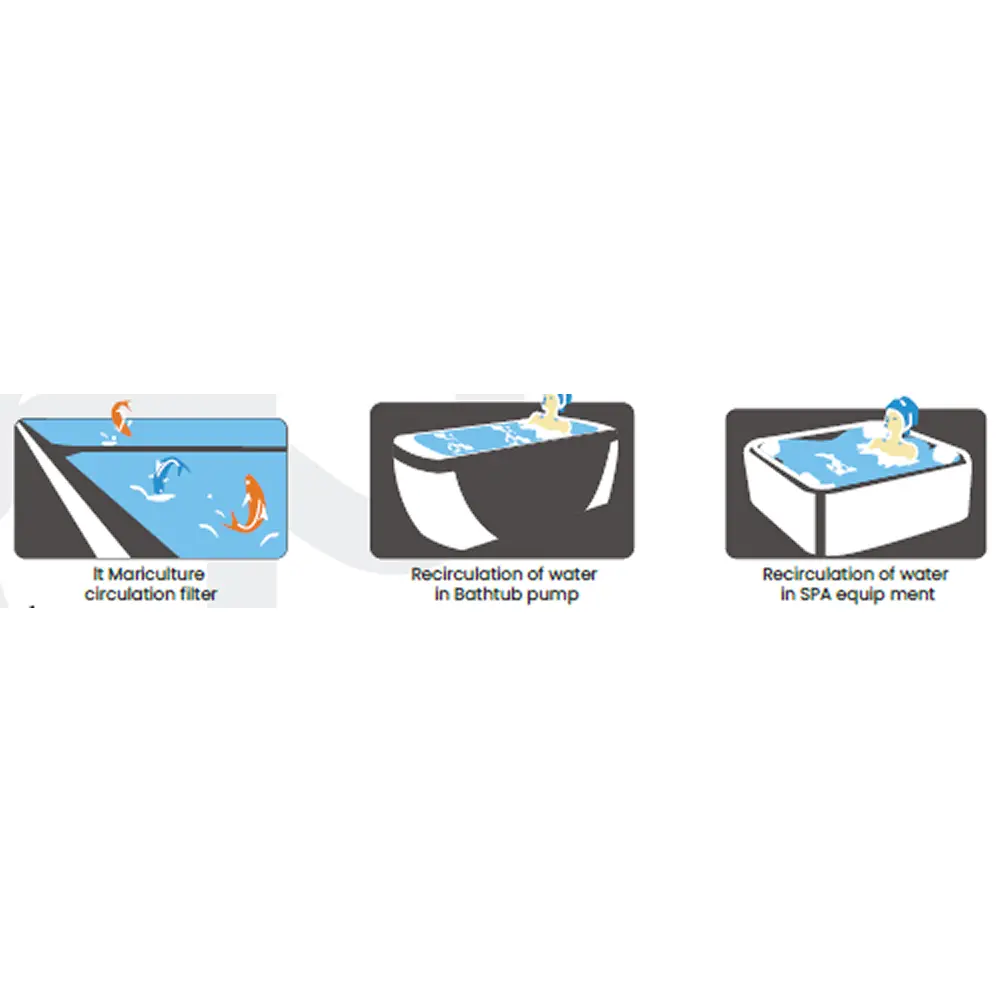

Applications

Massage circulation systems
Bathtub water circulation
Spa equipment circulation

Working Conditions

Medium temperature: 5–50°C
Environmental temperature: ≤50°C
Maximum working pressure: 0.3 MPa

Available Models

LP150, LP200, LP250, LP300
(230V/60Hz, 110V/60Hz, 110V/50Hz models available on request)

Model	Qmax (L/min)	Hmax (m)	Voltage / Frequency	Power (kW)	Power (HP)	Current (A)	Fitting Size (mm)	Gross Weight (kg)	Packing Size (mm)
LP150	520	12	220–240V / 50Hz	1.1	1.5	5.8	60.3 or 63	12	425 × 225 × 290
LP200	535	13	220–240V / 50Hz	1.5	2.0	7.0	60.3 or 63	12.7	425 × 225 × 290
LP250	600	15.5	220–240V / 50Hz	1.85	2.5	8.0	60.3 or 63	15.5	425 × 225 × 290
LP300	635	17	220–240V / 50Hz	2.2	3.0	10	60.3 or 63	16.3	425 × 225 × 290
