"STP" Series Water Pump2

The STP Series Water Pump features a well-engineered structure with a transparent cover and integrated filter, allowing easy inspection and maintenance. Built with high-quality internal components and a corrosion-resistant casing, the pump ensures smooth water circulation and long service life. Its compact design makes it ideal for installations where space efficiency and dependable performance are required.

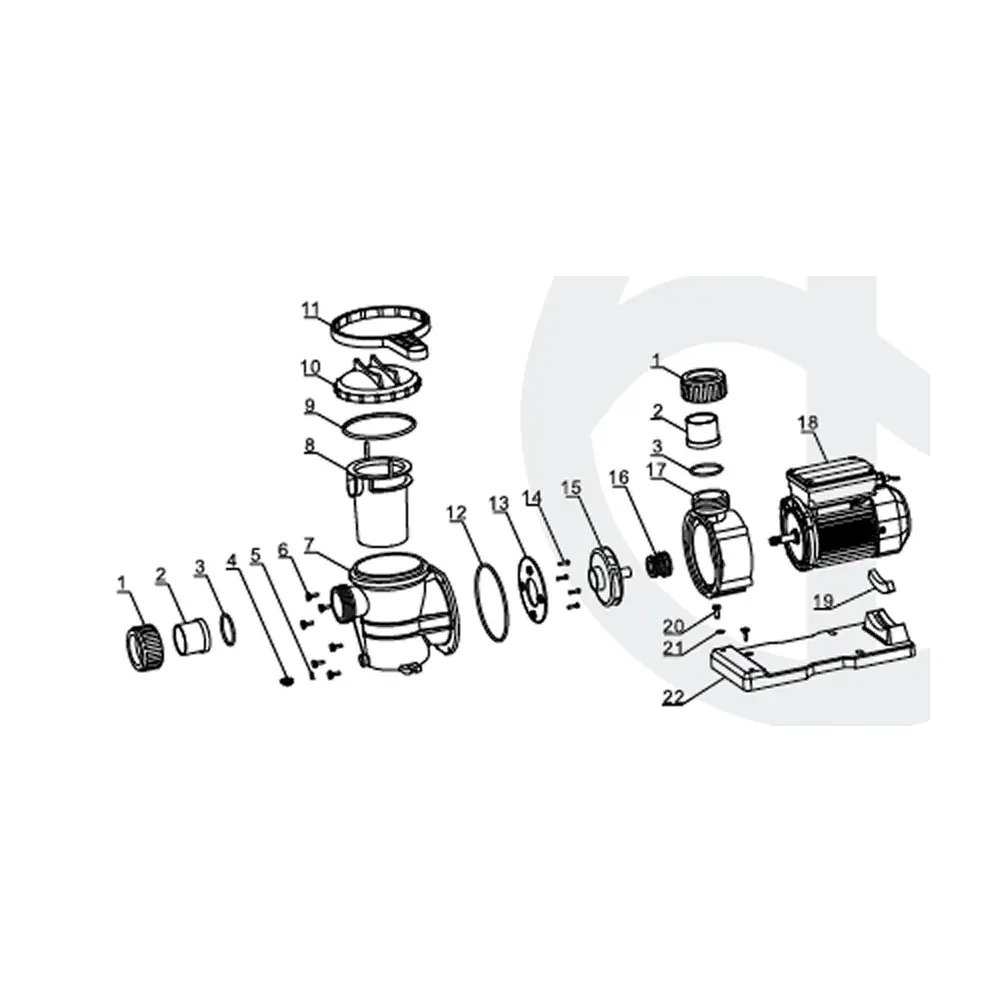

Main Components

• 1. Tie-in Nut
• 2. Tie
• 3. O-Ring
• 4. Drainage Plug
• 5. O-Ring
• 6. Hexagon Head Bolt & Plain Washer Assembly
• 7. Pump Cover
• 8. Filter
• 9. Transparent Cover Pad
• 10. Transparent Cover
• 11. Transparent Cover Handle
• 12. O-Ring
• 13. Cover Panel
• 14. Cross Recessed Pan Head Tapping Screws
• 15. Impeller
• 16. Mechanical Seal
• 17. Pumping Casing
• 18. Motor
• 19. Block Gland
• 20. Hexagon Bolt
• 21. Washer
• 22. Base

Working Conditions

• Medium temperature: 5–50°C
• Environmental temperature: <50°C
• Maximum working pressure: 0.3 MPa

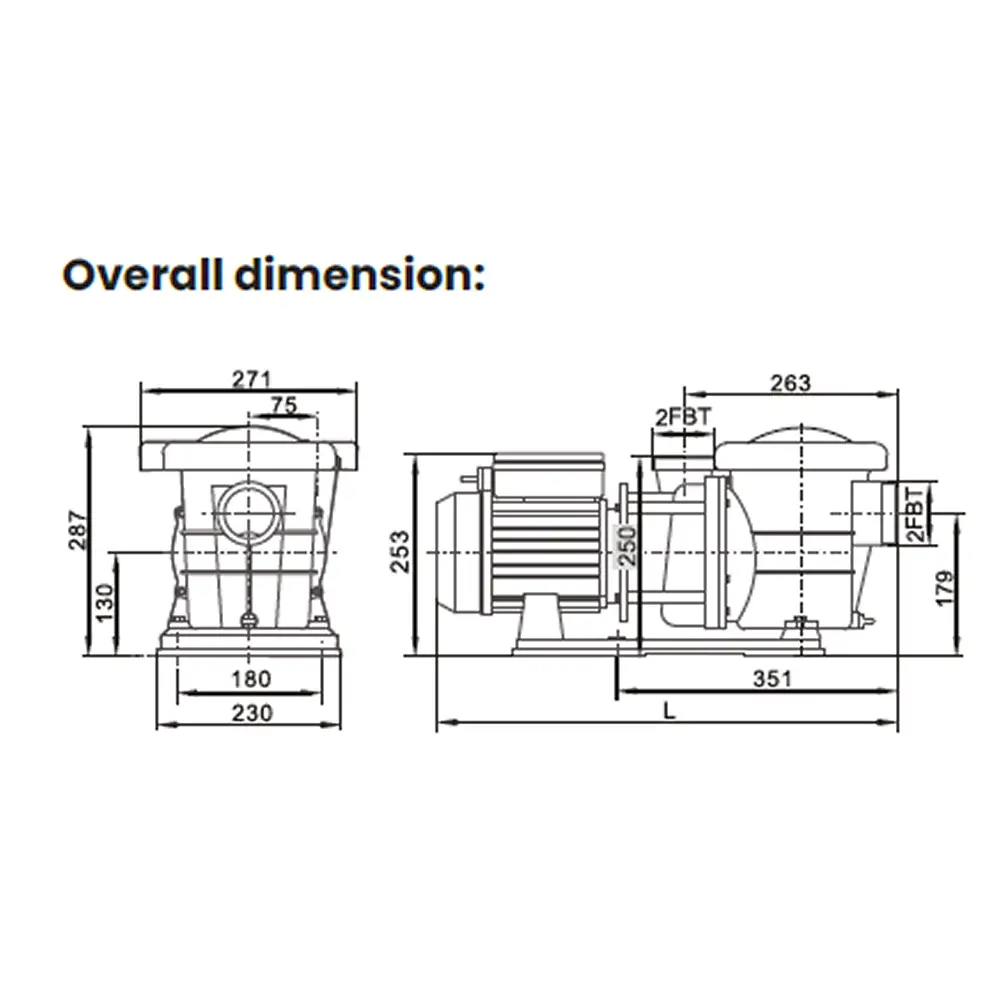

Available Models – Shape Size (mm)
