The WP Series Massage Pump is designed for powerful and reliable water circulation in spa baths, massage systems, and wellness installations. It delivers strong flow performance, stable pressure, and long-lasting operation, making it suitable for both residential and commercial applications.
  • Category: Heat Pump
Share:
  • Description
  • Specifications
The WP Series Massage Pump is engineered to support massage and circulation systems where consistent water flow is essential. It is widely used in spas, bathtubs, and therapeutic water systems. Built with durable internal components and a compact structure, the pump ensures smooth and stable operation under continuous working conditions. Its robust design allows for efficient performance while maintaining low maintenance requirements.
Working Conditions
  • Medium temperature: 5–50°C
  • Environmental temperature: <50°C
  • Maximum working pressure: 0.3 MPa

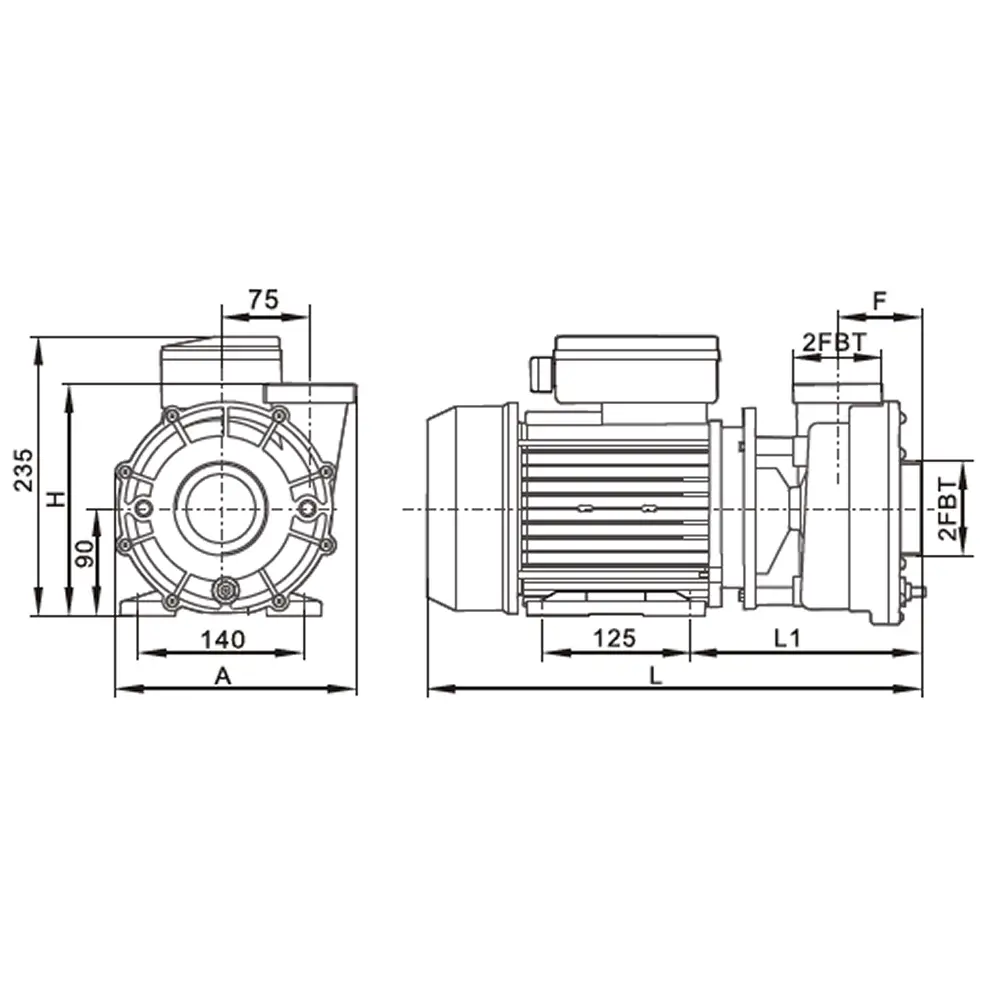

Technical Characteristics – Shape Size (mm)
Model H (mm) L (mm) W (mm) F (mm)
WP200-II 202 421 197 75
WP250-II 202 434 197 73
WP300-II 202 434 197 73
WP400-I 210 434 197 72

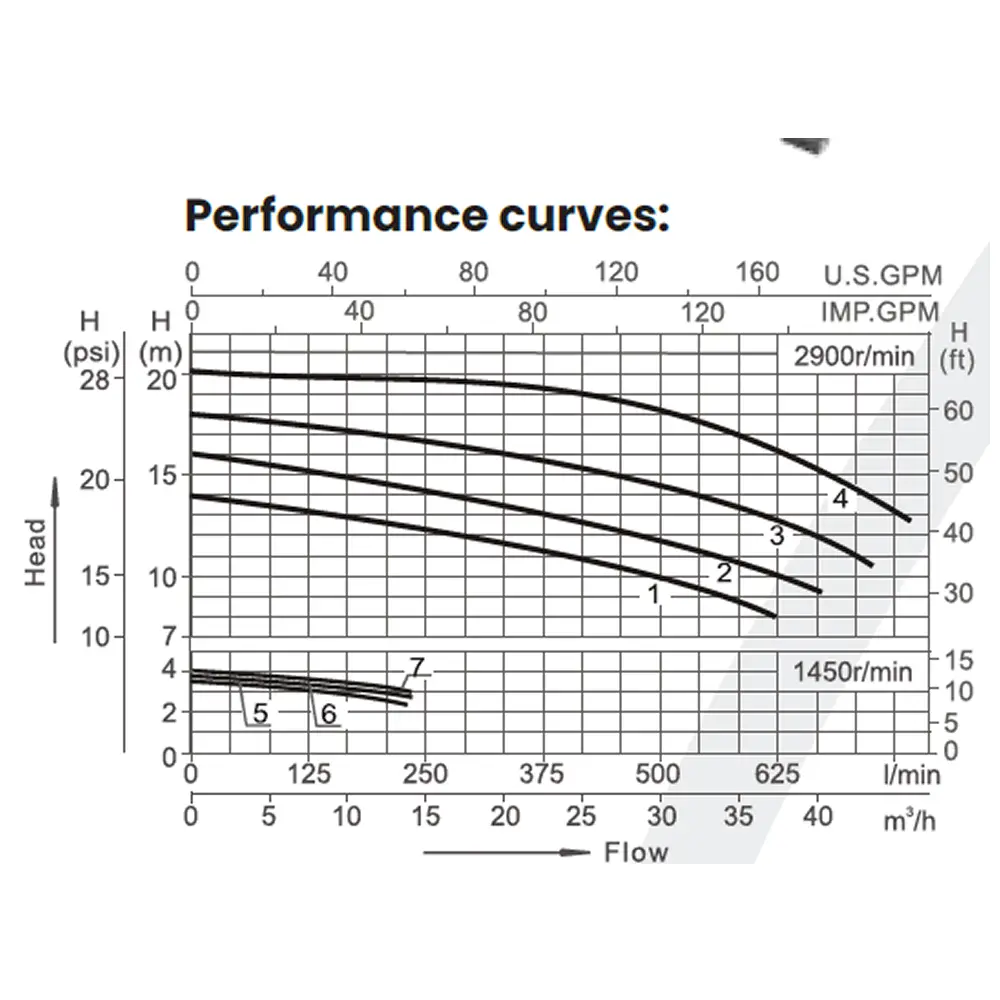

Technical Characteristics – Performance Data
Model Qmax (L/min) Hmax (m) Voltage / Frequency Power (HP) Power (kW) Current (A) Fitting Size (mm) Gross Weight (kg) Packing Size (mm)
WP200-I 620 14 220–240V / 50Hz 2.0 1.5 7.0 60.3 or 63 15.3 460 × 225 × 295
WP250-I 670 16 220–240V / 50Hz 2.5 1.85 9.0 60.3 or 63 16.3 460 × 225 × 295
WP300-I 730 18 220–240V / 50Hz 3.0 2.2 10 60.3 or 63 18.0 460 × 225 × 295
WP400-I 780 19 220–240V / 50Hz 4.0 3.0 14 60.3 or 63 19.2 460 × 225 × 295
WP200-II (Dual Speed) 280 / 620 3.5 / 14 220–240V / 50Hz 1/2 / 2.0 0.35 / 1.5 2.0 / 7.0 60.3 or 63 15.5 460 × 225 × 295
WP250-II (Dual Speed) 300 / 670 3.5 / 16 220–240V / 50Hz 5/8 / 2.5 0.4 / 1.85 2.5 / 9.0 60.3 or 63 — 460 × 225 × 295
WP300-II (Dual Speed) 330 / 730 4.0 / 18 220–240V / 50Hz — / 3.0 0.45 / 2.2 3.0 / 10 60.3 or 63 18.5 460 × 225 × 295
